Trucks & Trailers Specifications
This section provides dimension details of our rolling stock, you can also download datasheets on each truck/trailer type for more detailed information.
Artics

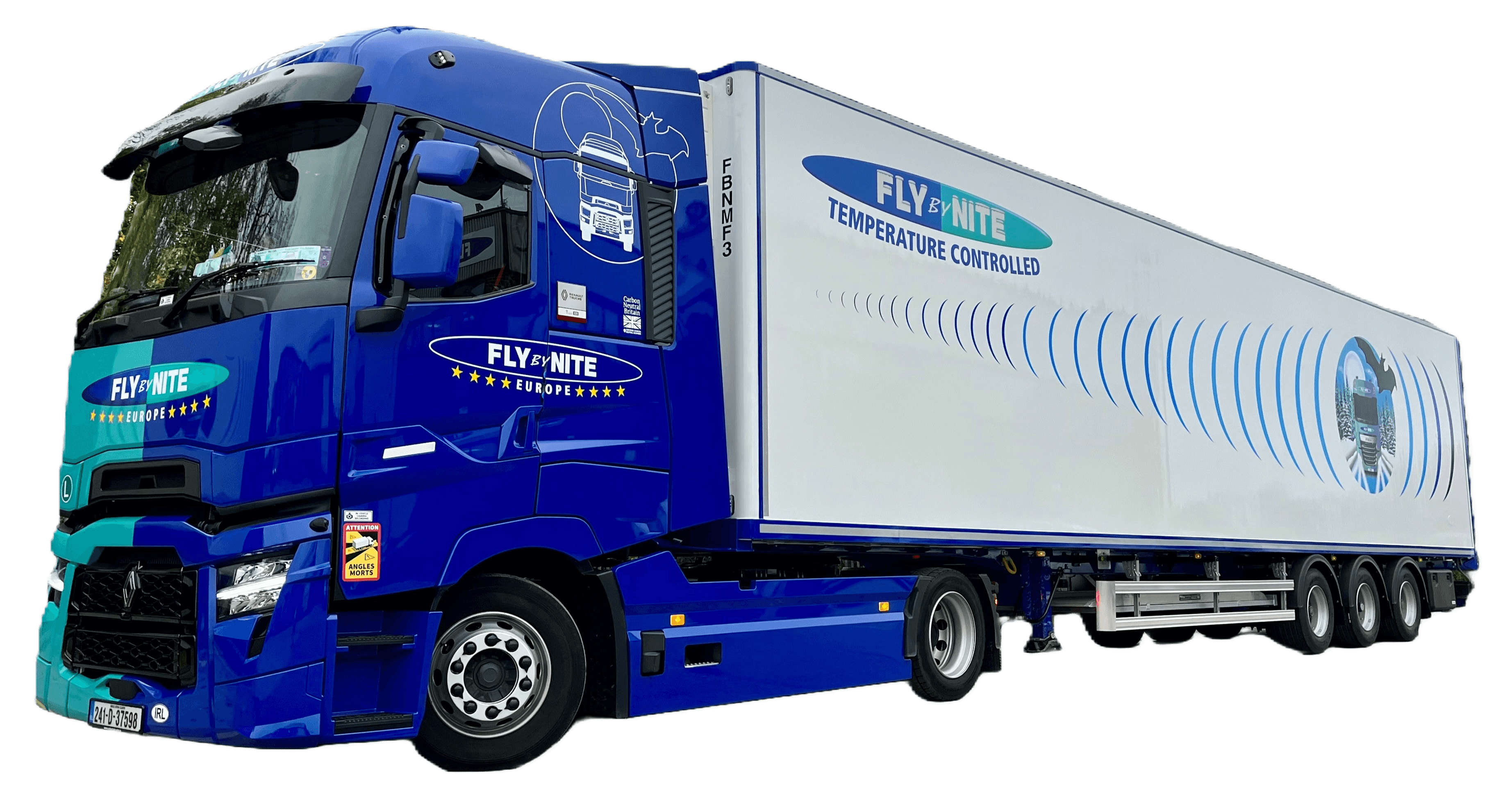

Temperature Controlled
Payload: 22T
| Internal Dimensions | ||
|---|---|---|
| Trailer Length | 13360mm | (43'-10") |
| Trailer Height | 2750mm | (9'-1") |
| Trailer Width | 2458mm | (8'-1") |
Flatbed
Payload: 22T
| Internal Dimensions | ||
|---|---|---|
| Trailer Length | 13597mm | (44'-7") |
| Trailer Height | 100mm | () |
| Trailer Width | 2472mm | (8'-1") |
Mega Curtain Side
Payload: 22T
| Internal Dimensions | ||
|---|---|---|
| Trailer Length | 13597mm | (44'-7") |
| Trailer Height | 3076mm | (10'-1") |
| Trailer Width | 2472mm | (8'-1") |
| External Dimensions | ||
| Total Height | 4000mm | (13'-1") |
Megacube Step Frame
Payload: 22T
| Internal Dimensions | ||
|---|---|---|
| Trailer Length | 13597mm | (44'-7") |
| Trailer Height | 3076mm | (10'-1") |
| Trailer Width | 2472mm | (8'-1") |
| External Dimensions | ||
| Total Height | 4000mm | (13'-1") |
Megacube Flat Floor
Payload: 22T
| Internal Dimensions | ||
|---|---|---|
| Trailer Length | 13580mm | (44'-7") |
| Trailer Height | 2936mm | (9'-8") |
| Trailer Width | 2472mm | (8'-1") |
| External Dimensions | ||
| Total Height | 4000mm | (13'-1") |
Rigid Trucks
26T
Payload: 15T
| Internal Dimensions | ||
|---|---|---|
| Box Length | 8620mm | (28'-3") |
| Box Height | 2860mm | (9'-4") |
| Box Width | 2470mm | (8'-1") |
| External Dimensions | ||
| Total Length | 11300mm | (37'1") |
| Total Height | 4000mm | (13'11") |
12T
Payload: 5T
| Internal Dimensions | ||
|---|---|---|
| Box Length | 6400mm | (21') |
| Box Height | 2460mm | (8'-1") |
| Box Width | 2460mm | (8'-1") |
| External Dimensions | ||
| Total Length | 9300mm | (30' 7") |
| Total Height | 3750mm | (12' 3") |
